Hy-Pro FC – Filter Cart

We are a Hy-Pro Filtration partner.

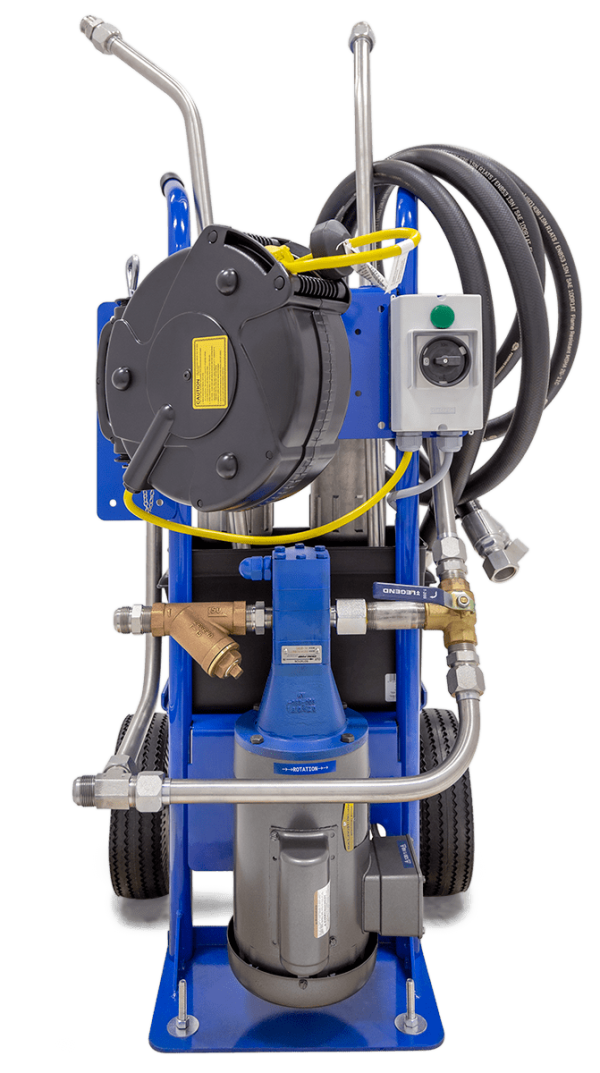

A fully self-contained mobile solution for bulk oil handling, fluid transfer and reservoir or gearbox conditioning. Ideal for lower viscosity hydraulic oil, lube oil and diesel fuel.

The easy to manoeuver hand-truck style design with never-flat pneumatic tires and cast iron gear pump with internal relief mean you get powerful filtration exactly when and where you need it.

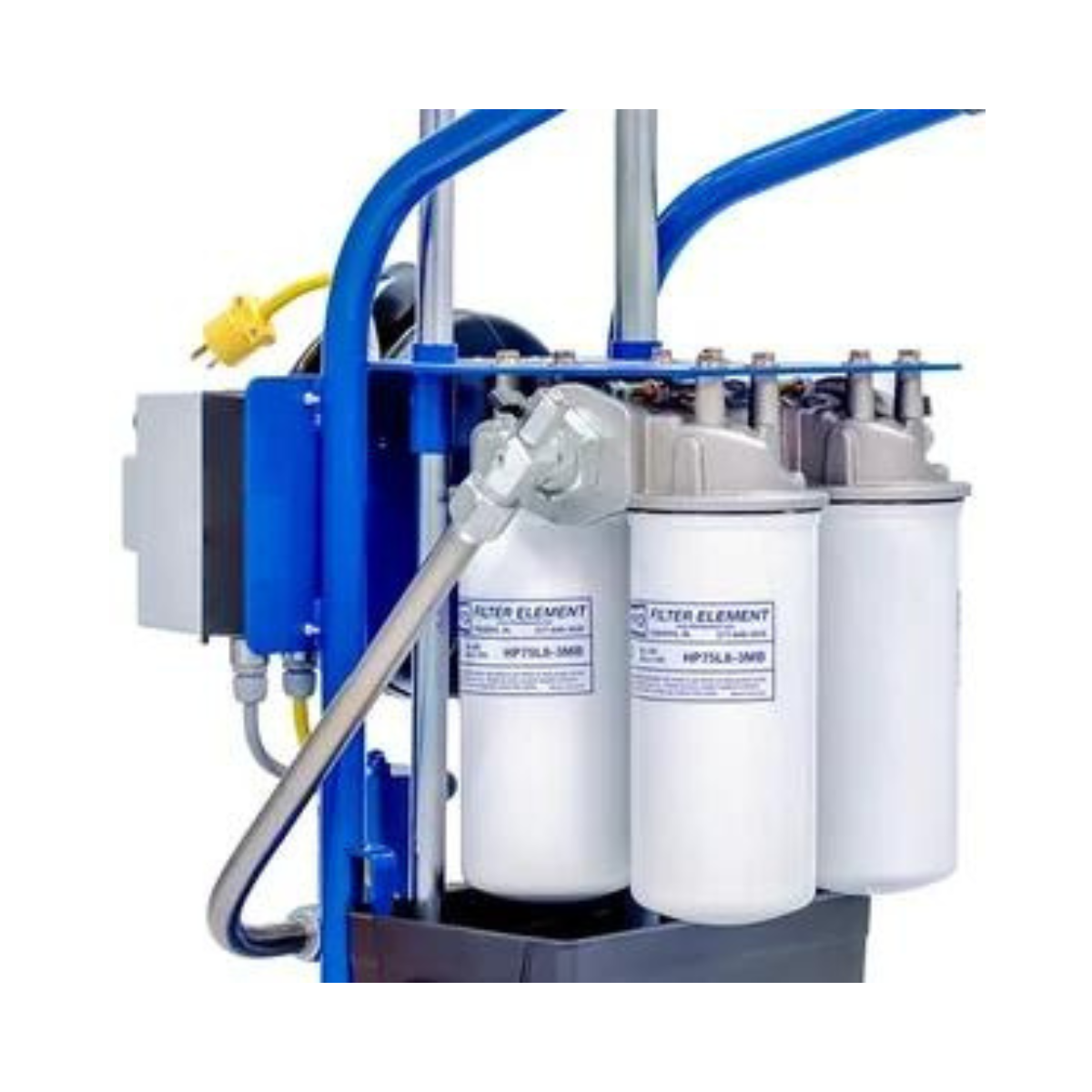

Staged filtration allows a range of media selections for particulate and water removal to deliver ISO Codes right on target. Choose between dual MF110 cartridge (standard) or up to four Spin-On elements to tackle the most viscous fluids and achieve unimaginably low ISO Codes in a single pass.

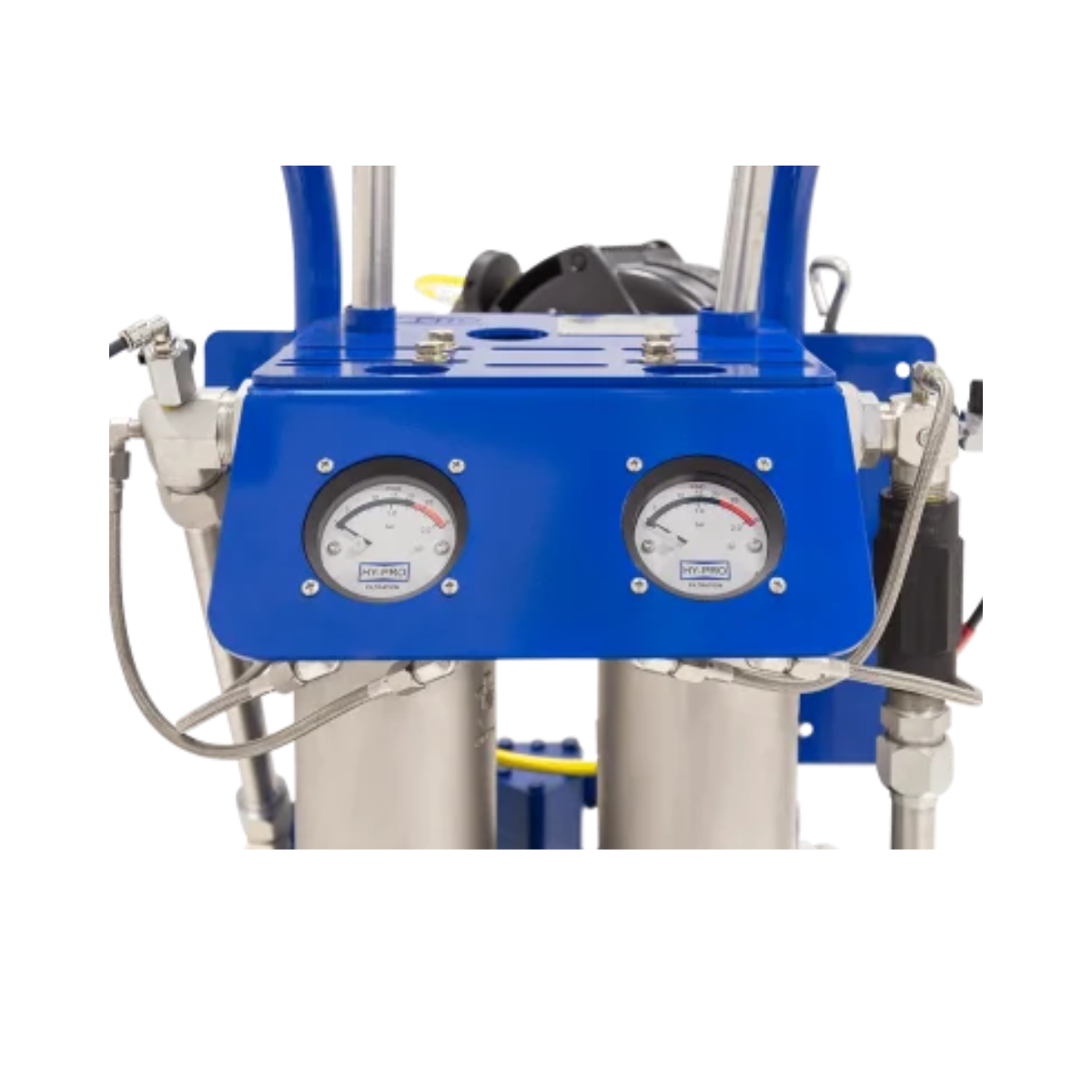

Sample ports in the right locations arm you with access to consistently accurate system conditions which is why every FC comes standard with up- and downstream sample ports in their proper positions. And with the 35’ (11m) retractable cord reel or 35’ air hose for pneumatic models, it’s easy to see why the standard FC isn’t so standard after all.

With the optional filter bypass line, cold starts, gearbox pump-outs, and even element change outs become easier than ever. Add the optional PM-1 particle monitor for real time cleanliness data and know exactly how your filtration is performing without the need for a bottle.

The FC comes in a variety of flow rates and with electric options that range from 120 to 575 V ac, single or three phase. Or choose the pneumatic and explosion proof models to take your filtration into hazardous zones like you never thought possible. Even color coordinate each FC to your existing safety standards. With thousands of combinations to choose from, the possibilities are endless for what you can do with the FC.

Please hit the Enquiry button to discuss your specific requirements or to request a quotation
